Dimensions

Unit Load Devices

Whatever the size and weight of your shipment, our air freight solutions include specialized unit load devices tailored to your cargo needs

Air Freight Dimensions

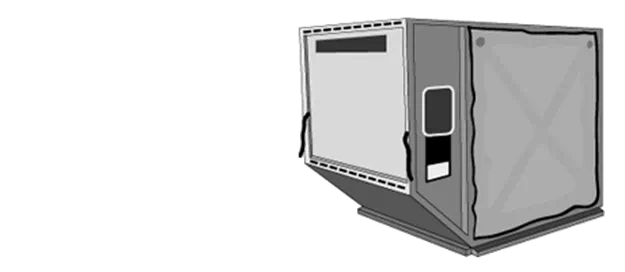

LD3/AKE/AVE Container

LD3/AKE/AVE

Container

Base Dimensions: Cm: (L) 156.2 x (W) 153.4
Max. Gross Weight: Lower deck: 1,587 kg
IATA Codes: AVA, AVB, AVE,AKE, AVM,AVN, RKN, RVB, RVE, RVN

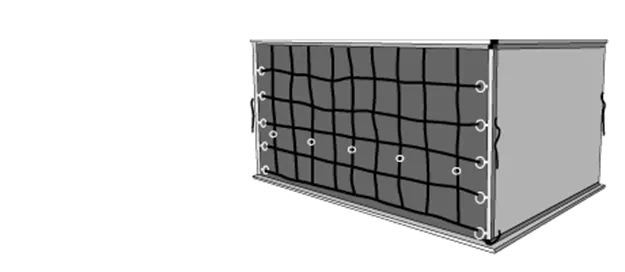

LD9/AAP Container

LD9/AAP

Container

Base Dimensions: Cm: (L) 317.5 x (W) 223.5
Max. Gross Weight: Lower deck: 1,587 kg
IATA Codes: AAZ, AAP, RAZ, RAP

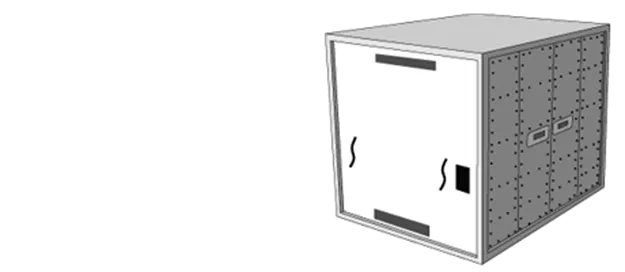

M1/AMA Container

M1/AMA

Container

Base Dimensions: Cm: (L) 317.5 x (W) 243.8
Max. Gross Weight: 6,800 kg
IATA Codes: AQ6, AQA, AMA, AMK, RQA, AQD
High-Security Container

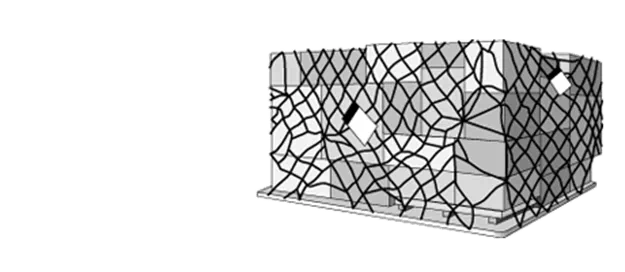

P1P/PAG

Pallet

Base Dimensions: Cm: (L) 317.5 x (W) 223.5
Max. Gross Weight: 4,626 kg
IATA Codes: PIA, PIC, PID, PIG, PIP, PIX, PAG, PAJ, PAP, PAA, PAX

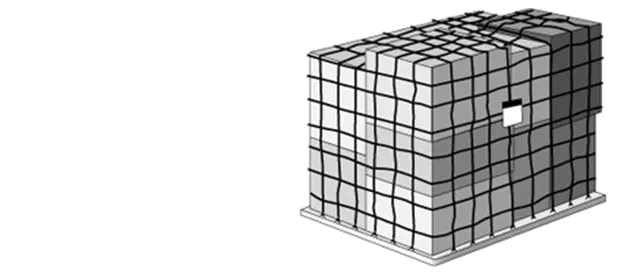

High-Security Container

P6P/PMC

Pallet

Base Dimensions: Cm: (L) 317.5 x (W) 242.8
Max. Gross Weight: Lower deck: 4,626 kg (depending on aircraft) Lower deck: 5,035 kg (depending on aircraft)
IATA Codes: AP6C, P6P, PQP, PMC, PMP

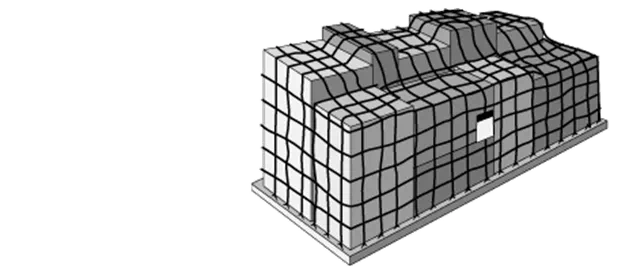

High-Security Container

PGA

Pallet

Base Dimensions: Cm: (L) 605.8 x (W) 243.8
Max. Gross Weight: 11,300 kg
IATA Codes: P7A, P7E, P7F, PSG, PGE, PGA

Sea Freight Container Dimensions

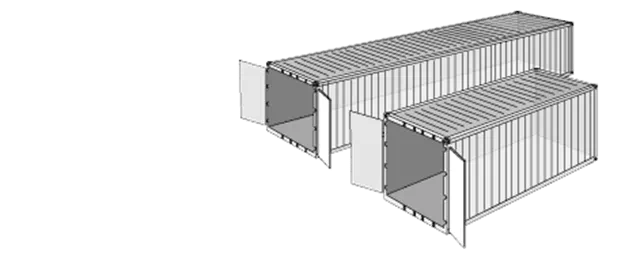

Dry Container

Dry Container

Tare weight 2,300
Payload Capacity 25,000 kg
Cubic capacity: 33.2 m3
Internal Length: 5.9 m
Tare weight 3,750
Payload Capacity 27,600 kg
Cubic capacity: 67.7 m3
Internal Length: 12.03 m

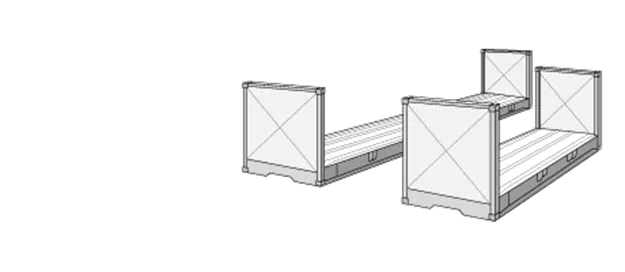

Flat Rack Container

Flat Rack Container

Tare weight 2,360 kg
Payload Capacity 30,140 kg
Cubic capacity: 32.7 m3
Internal Length: 5638 mm
Tare weight 5,000 kg
Payload Capacity 40,000 kg
Cubic capacity: 62.2 m3
Internal Length: 11660 mm

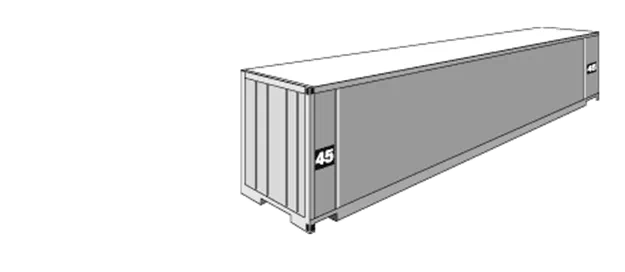

High Cube Container

High Cube Container

Tare weight 3,940 kg
Payload Capacity 28,560 kg
Cubic capacity: 76.4 m3
Internal Length: 12.03 m
Tare weight 4,820 kg
Payload Capacity 27,860 kg
Cubic capacity: 86 m3
Internal Length: 13.56 m

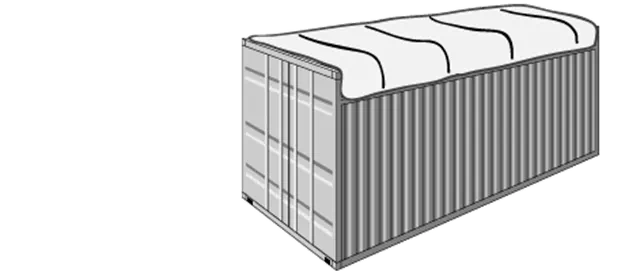

Open Top Container

Open Top Container

Tare weight 2,350 kg
Payload Capacity 28,130 kg
Cubic capacity: 32.5 m3
Internal Length: 5.9 m
Tare weight 3,850 kg
Payload Capacity 26,630 kg
Cubic capacity: 66.4 m3
Internal Length: 12.03 m

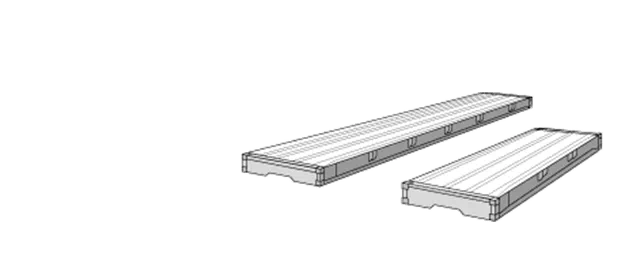

Platform Container

Platform Container

Tare weight 2,740 kg
Payload Capacity 31,260 kg
Internal Length: 6.06 m
Internal Width: 2.44 m
Tare weight 5700 kg
Payload Capacity 39,300 kg
Internal Length: 12.19 m
Internal Width: 2.44 m

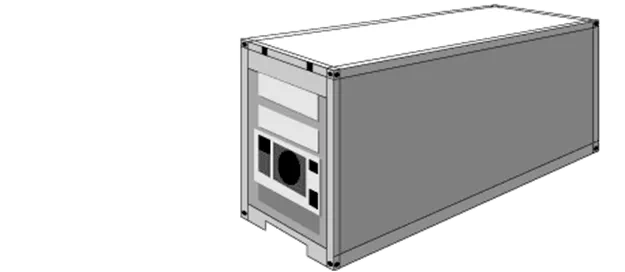

Reefer Container

Reefer Container

Tare weight 3,080 kg
Payload Capacity 27,400 kg
Internal Length: 28.3 m3
Internal Width: 5.44 m
Tare weight 4,480 kg
Payload Capacity 29,520 kg
Internal Length: 67.3 m3
Internal Width: 11.58 m

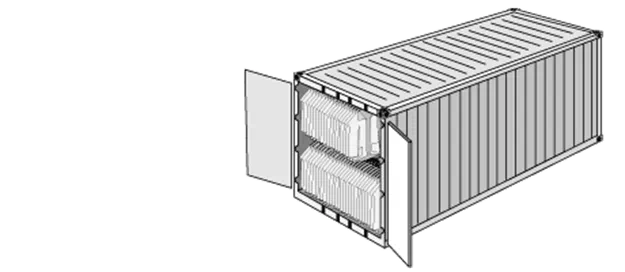

Garments Container

Garments on Hangers

Tare weight 2,300 kg
Payload Capacity 28,180 kg
Internal Length: 33.2 m3
Internal Width: 5.9 m
Tare weight 3,750 kg
Payload Capacity 28,750 kg
Internal Length: 67.7 m3
Internal Width: 12.03 m
